Home / Solutions / Security fencing

Security fencing

Perimeter systems matched to the risk of the site, from economical chainmesh to high-security palisade. Fabricated in our Maddington workshop and installed by RMF-managed installation teams.

Request a quote View projects

On this pageGarrison School-spec Garrison Palisade Chainmesh Weldmesh Electric Compare systems

Garrison

Commercial security

Garrison fencing

Our most specified commercial fence. Pressed spear pickets on punched SHS rails give a clean, strong line that suits building frontages as well as industrial boundaries. Available in steel or aluminium, galvanised or powder coated to any colour. Backed by warranty on the panels, and powder coated to a spec fit for the site it's going on.

Best for: Commercial frontages, industrial sites, schools and public open space.

Heights: 1800, 2100, 2400 mm (custom to 3000 mm)
Panel width: 2400 mm
Post centres: 2450 mm max
Pickets: 25 × 25 × 1.2 mm pressed spears
Rails: 40 × 40 × 1.6 mm SHS, punched
Posts: 65 × 65 × 2.5 mm SHS
Material: Steel or aluminium
Finish: Hot-dip galvanised or powder coated
Mounting: In-ground footing, base plated with chemical anchors, or core drilled and grouted

Get a price

Black Garrison fencing along a school boundary

School spec

Education

School-spec Garrison

A heavier Garrison built to education requirements, with thicker pickets at close centres face-welded to the rails, and heavier end and corner posts. Designed to hold up to years of kids, balls and climbing attempts.

Best for: Public and private school boundaries and internal secure areas.

Height: 2100 mm
Panel width: 2400 mm
Post centres: 2450 mm max
Pickets: 25 × 25 × 1.6 mm pressed spears at 127.5 mm centres, face welded
Rails: 40 × 40 × 1.6 mm SHS
Posts: 65 × 65 × 3.0 mm SHS intermediate, 100 × 100 × 5.0 mm SHS ends and corners
Finish: Hot-dip galvanised or powder coated

Get a price

Palisade

High security

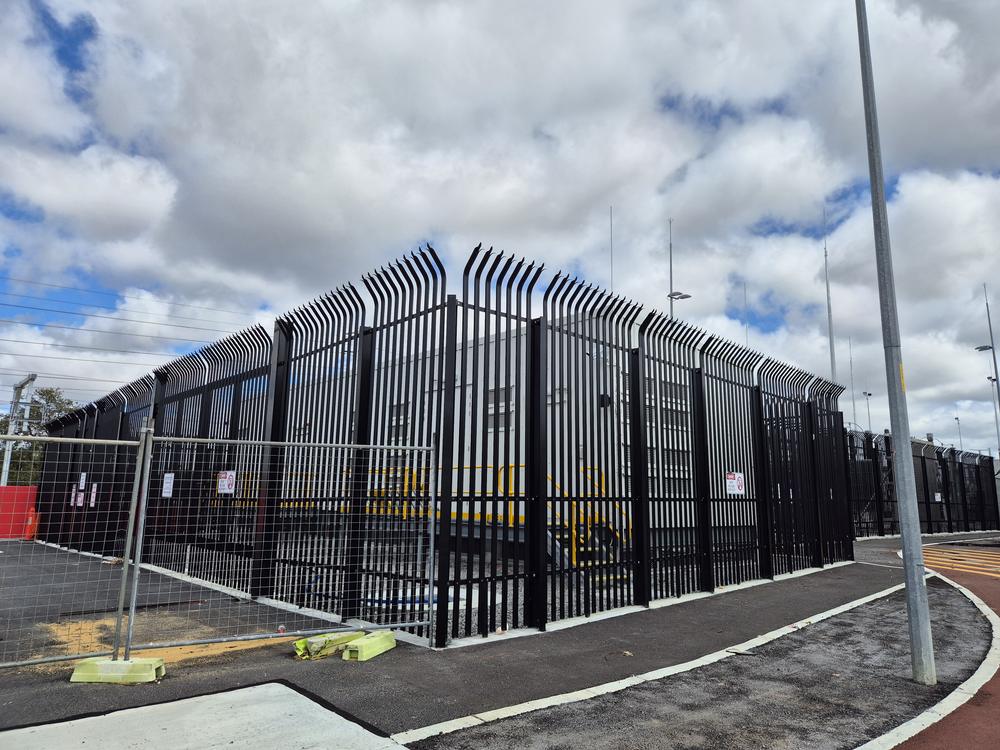

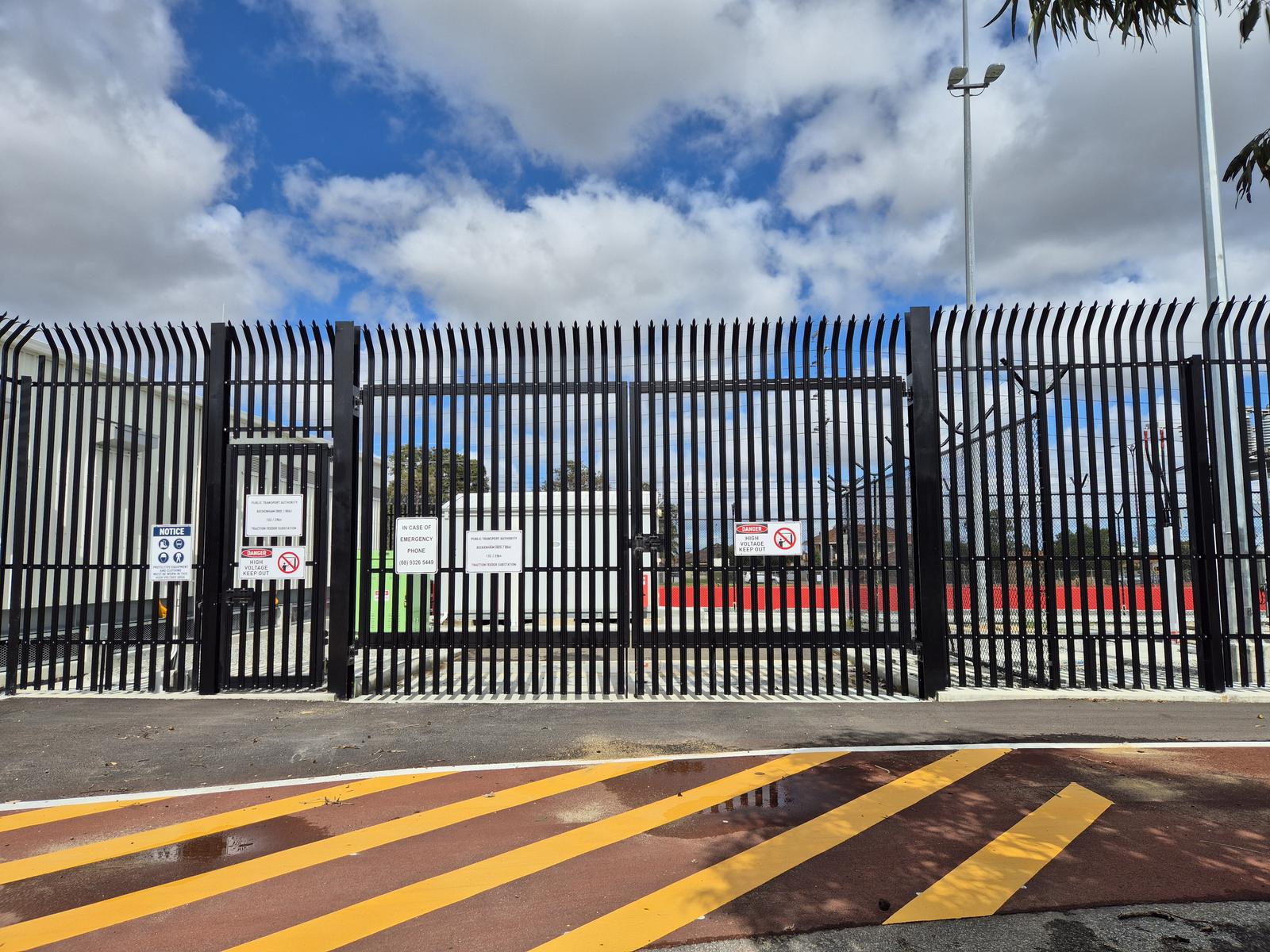

Palisade fencing

Tri-point W-profile pales on steel angle rails and I-beam posts, fixed with shear bolts so panels can't be undone from outside. We use UK or Australian-made palisade for quality and compliance with Australian standards.

Best for: Substations, utilities, rail and transport depots, and other high-risk sites.

Heights: 1800, 2100, 2400 mm (to 4000 mm on PTA spec)
Panel width: 2750 mm
Post centres: 2750 mm max
Pales: Tri-point W-profile at 150 mm centres
Rails: 50 × 50 RSA
Posts: 100 × 50 IPE, new post at every change of direction
Fixings: Fish plate connectors, shear bolts and nuts
Finish: Hot-dip galvanised or powder coated

Get a price

Chainmesh

Economical perimeter

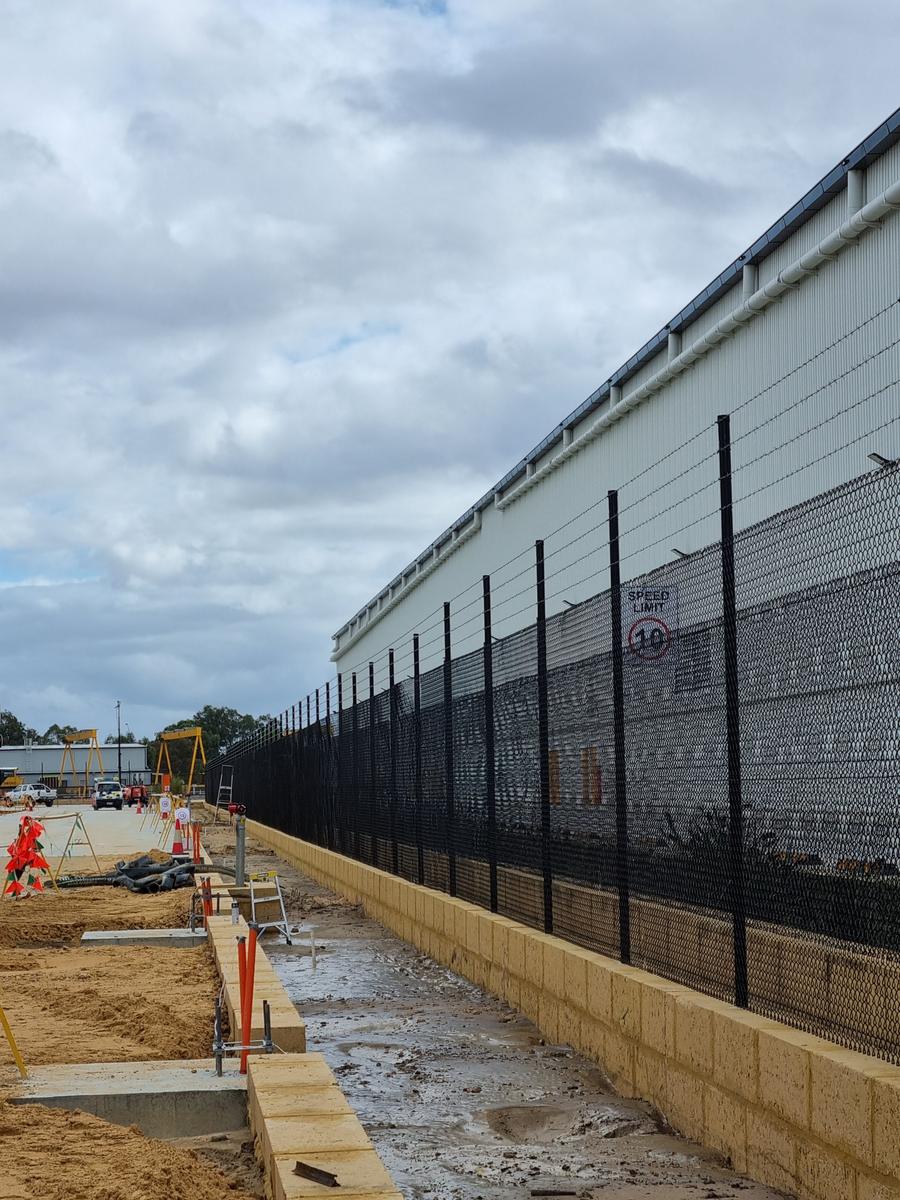

Chainmesh fencing

The most cost-effective way to secure a long boundary. Galvanised or black PVC-coated mesh on galvanised or powder-coated pipe, with optional barbed wire to lift the security level.

Best for: Industrial boundaries, compounds, laydown yards and rural infrastructure.

Mesh heights: 1800, 2100, 2400 mm
With barbed wire: 3 rows, total height 2350 to 2950 mm
Wire: Ø2.5 or Ø3.15 mm, galvanised or PVC black
Diamond: 40, 45 or 50 mm
Posts: 50NB medium end and corner, 40NB intermediate
Rails: 32NB top and bottom rail, or rail-less
Footings: In-ground or core drilled

Get a price

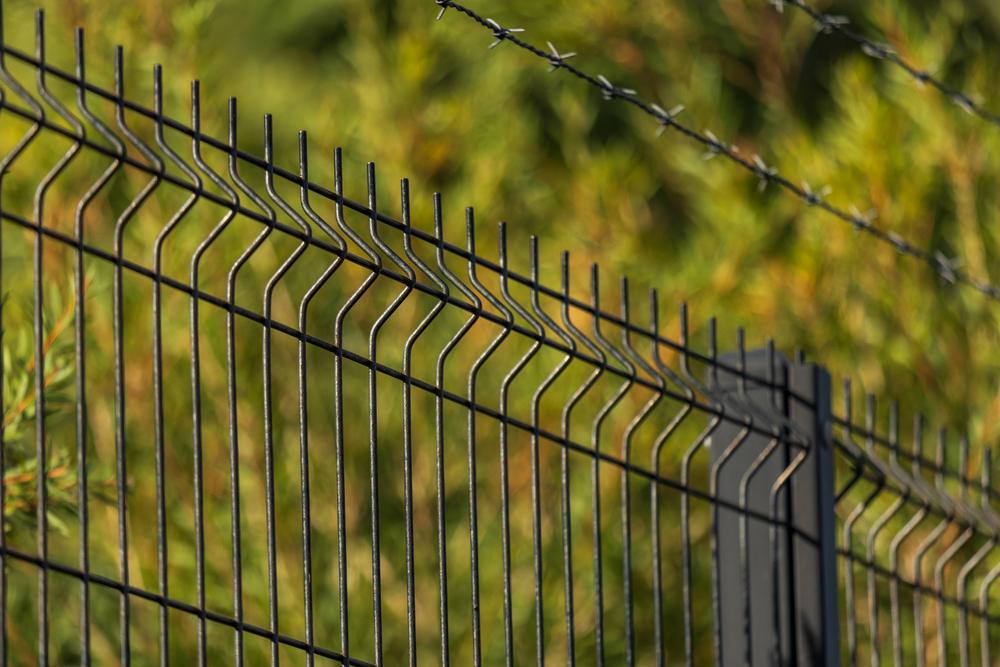

Black welded mesh security fence panels with barbed wire

Weldmesh

Anti-climb

Weldmesh fencing

Rigid welded mesh panels with small apertures that are hard to climb or cut, while keeping clear sight lines so nobody can hide behind the fence. Can be topped with barbed or razor wire.

Best for: Critical infrastructure, data and comms sites, and anywhere visibility matters.

Rigid anti-climb, anti-cut panels
Clear sight lines through the fence
Barbed or razor wire topping options

Panel sizes and aperture options vary by system. Talk to us about the security rating you need.

Get a price

Electric

Deterrence and detection

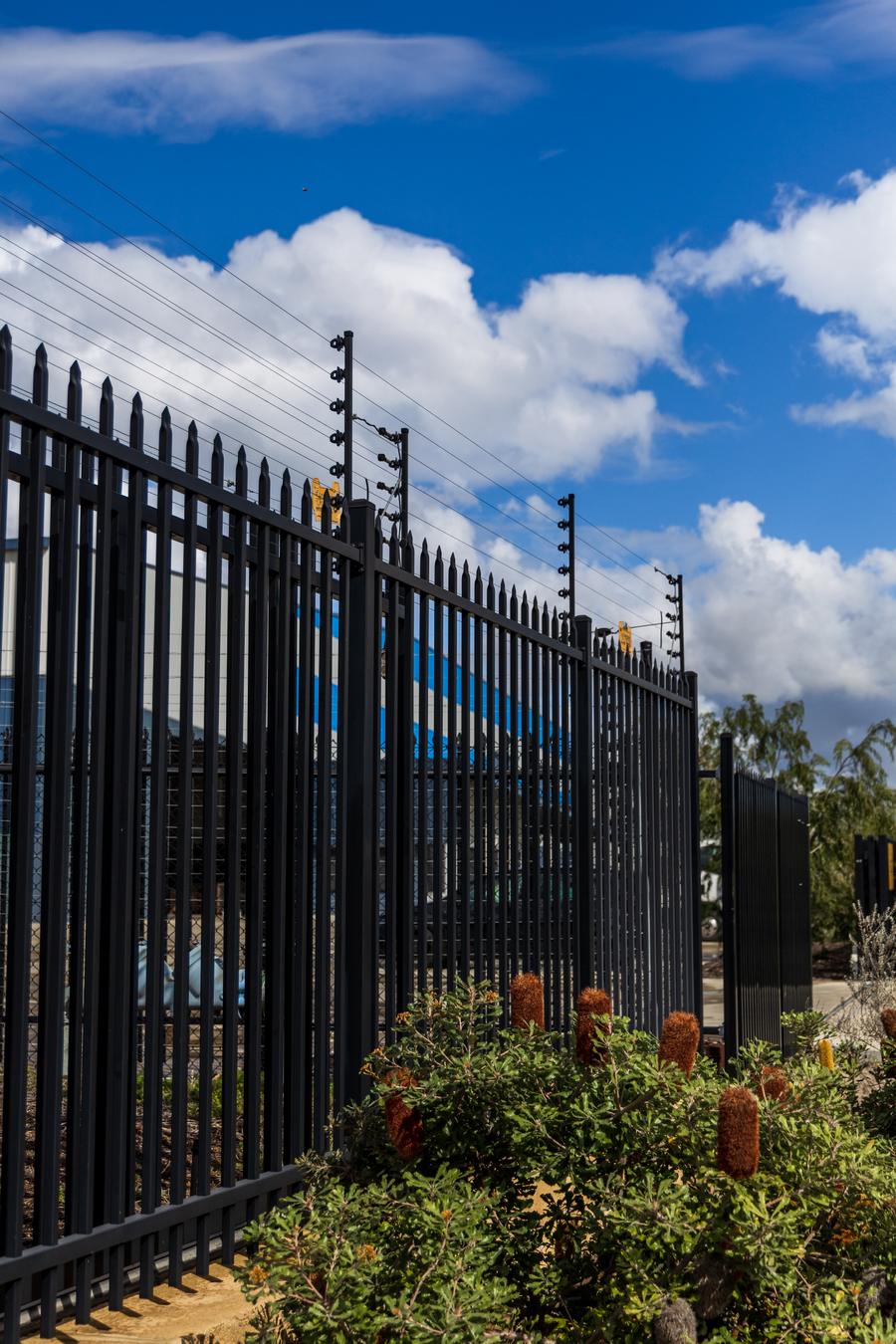

Electric fencing

Electric fence tops fitted to new or existing Garrison, palisade or chainmesh fencing. Adds a strong visual deterrent and can connect to alarm monitoring so any tampering is detected.

Best for: Logistics yards, vehicle storage and sites with high-value stock.

Fits new or existing fences
Connects to alarm monitoring
Solar power option
Mounted above fences, on walls or free-standing

Get a price

Why the install matters

A fence is only as good as how it's put up

Panels that aren't set to the right height, on posts that aren't plumbed and packed properly, look wrong from the day they go in and only get worse. It's one of the most common corners cut on site.

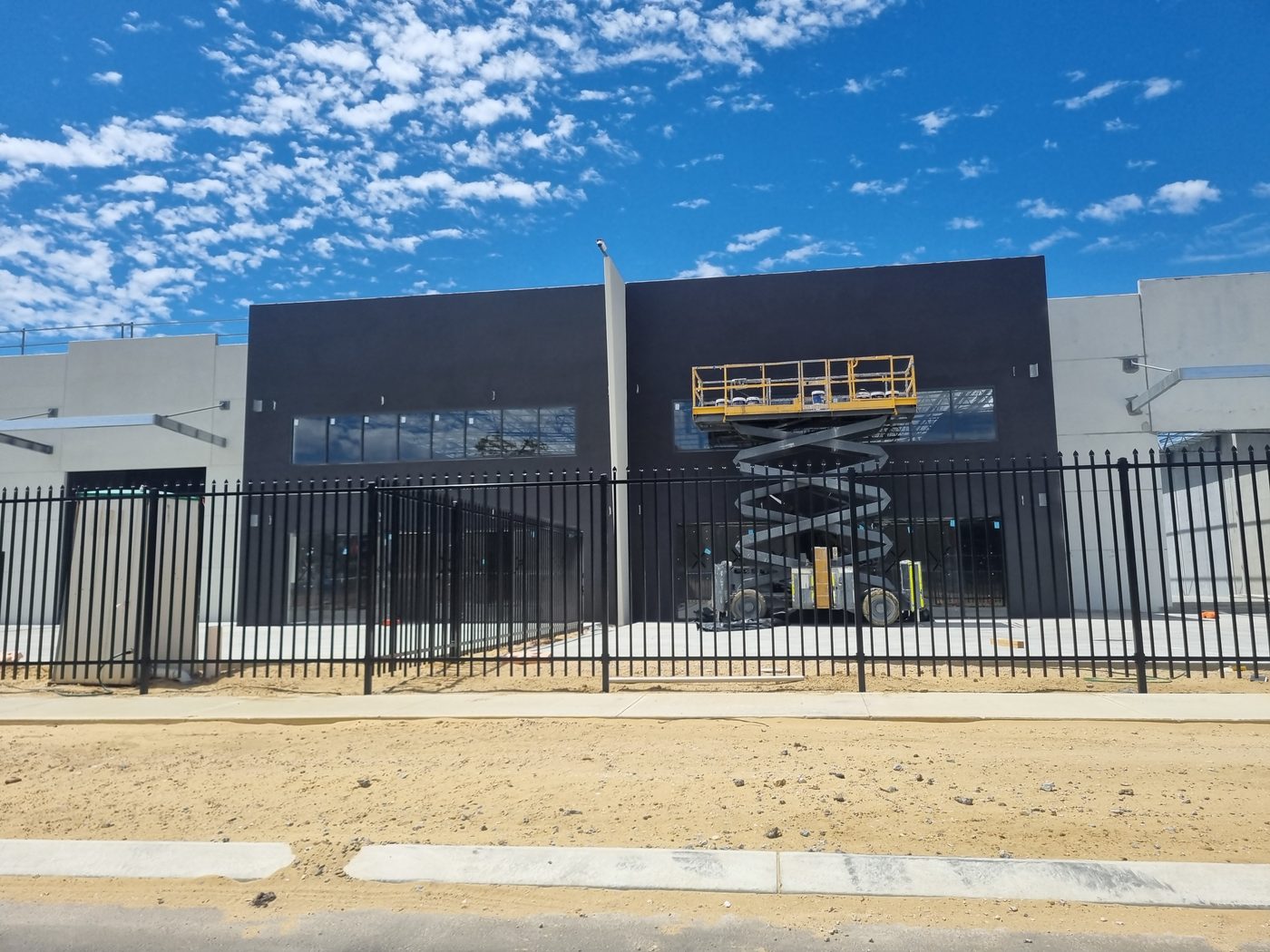

Garrison fence panels sitting below the top of the posts on a commercial site — **Posts below the panels**A quick way to save time on site, but it looks unfinished and weakens the fence line.

RMF Garrison fence with panels and posts finishing flush and true — **Built the RMF way**Posts and panels set out and finished flush, so the fence line reads clean from every angle.

Choosing a system

Match the fence to the risk

A general guide to how our security systems compare. The right answer depends on the site, the threat and the budget, so we'll recommend a system as part of every quote.

System	Security level	Climb and cut resistance	See-through	Typical use
Chainmesh	2 / 5	Low, higher with barbed wire	High	Long boundaries on a budget, compounds, sports
Garrison	3 / 5	Medium	High	Commercial frontages, schools, public spaces
Weldmesh	4 / 5	High, small apertures	High	Critical infrastructure, data and comms sites
Palisade	5 / 5	High, triple-point pales	Medium	Substations, utilities, rail and transport depots

Any system can be upgraded with barbed wire, razor wire or an electric fence top, and paired with automated gates and access control.
